ArcelorMittal steel solutions for packaging continue to unlock new lightweighting potential, enabling you to achieve the highest levels of performance with reduced thickness, material usage, and CO₂ emissions.
Discover our latest product catalogue, offering innovative solutions for a wide range of applications, including easy-open and standard ends, three-piece bodies, shaped bodies, drawn cans, beverage and food cans, tabs, aerosols, crown corks and caps, microwaveable cans, and specialty packaging.
Explore the catalogue and find the right steel solution to improve your packaging.
| Tinplate and ECCS | Blackplate | |
|---|---|---|
| Coils and sheets | EN 10202:2022 ASTM A623 (on request) |
EN 10205 |
| Slit coils | Dimension: EN 10140 |
|
Grade (EN 10202:2022) |
Grade (Old EN) |
Grade (ASTM) |
Annealing |
Reduction |
Yield stress (MPa) |
Thickness range |
Main end use |
|---|---|---|---|---|---|---|---|
|
TS230 |
T50 |
T1 |
BA |
SR |
230 |
0.16 - 0.49 |
Bakeware |
|
TS245 |
T52 |
T2 |
BA |
SR |
245 |
0.16 - 0.49 |
General line |
|
TS260 |
T55 |
|
BA |
SR |
260 |
0.16 - 0.49 |
Expanded cans |
|
TS275 |
T57 |
T3 |
BA |
SR |
275 |
0.16 - 0.49 |
General purpose |
|
TS290 |
T59 |
T4 |
BA |
SR |
290 |
0.16 - 0.49 |
Aerosol tops |
|
TS340 |
|
|
BA |
SR |
340 |
0.15 - 0.49 |
Can bodies, can ends |
|
TS480 |
|
|
BA |
DR |
480 |
0.13 - 0.34 |
3P can bodies |
|
TS500* |
|
|
BA |
DR |
500 |
0.13 - 0.34 |
3P can bodies |
|
TS520 |
DR520 |
DR7.5 |
BA |
DR |
520 |
0.12 - 0.34 |
3P can bodies |
|
TS550 |
DR550 |
DR8 |
BA |
DR |
550 |
0.12 - 0.34 |
3P can bodies |
|
TH330 |
|
|
CA |
SR |
330 |
0.16 - 0.49 |
Drawn can bodies |
|
TH360 |
|
|
CA |
SR |
360 |
0.16 - 0.49 |
Drawn can bodies |
|
TH415 |
T61 |
T4 |
CA |
SR |
415 |
0.16 - 0.49 |
3P can bodies, crown corks |
|
TH435 |
T65 |
T5 |
CA |
SR |
435 |
0.16 - 0.49 |
3P can bodies, can ends |
|
TH460 |
|
|
CA |
DR |
460 |
0.14 - 0.49 |
Can ends, easy-open ends |
|
TH480 |
|
|
CA |
DR |
480 |
0.13 - 0.40 |
3P can bodies |
|
TH520 |
DR520 |
DR7.5 |
CA |
DR |
520 |
0.12 - 0.40 |
3P can bodies, tab stocks |
|
TH550 |
DR550 |
DR8 |
CA |
DR |
550 |
0.12 - 0.38 |
3P can bodies, tab stocks, aerosol tops and bottoms |
|
TH580 |
DR580 |
DR8.5 |
CA |
DR |
580 |
0.12 - 0.38 |
Twist-off caps, drawn cans |
|
TH620 |
DR620 |
DR9 |
CA |
DR |
620 |
0.12 - 0.34 |
Twist-off caps, can ends |
|
TH650 |
|
DR9.5 |
CA |
DR |
650 |
0.14 - 0.34 |
can ends |
Tolerances on yield stress comply with Euronorm, i.e. +/- 50 MPa, after ageing
*Specific offer not in EN 10202:2022
|
Designation |
Yield stress (MPa) |
Thickness (mm) |
Typical elongation (RD) |
|---|---|---|---|
|
ML460 |
460 |
0.17 - 0.26 |
14% |
|
ML500 |
500 |
0.16 - 0.25 |
8% |
|
ML550 |
550 |
0.16 - 0.28 |
8% |
|
ML580 |
580 |
0.16 - 0.25 |
8% |
|
ML600 |
600 |
0.16 - 0.25 |
8% |
|
ML620* |
620 |
0.16 - 0.25 |
3% |
|
ML650* |
650 |
0.16 - 0.25 |
3% |
|
ML700 |
700 |
0.14 - 0.20 |
3% |
*ML620 & ML650: higher elongation may be possible under consultation
Tolerances yield stress +/-30 MPa
|
Designation |
Yield stress (MPa) |
Thickness (mm) |
Typical elongation (RD) |
|---|---|---|---|
|
ML550-OpenUp |
550 |
0.17 - 0.23 |
8% |
|
ML620-OpenUp |
620 |
0.17 - 0.252 |
8% |
|
ML650-OpenUp |
650 |
0.17 - 0.252 |
6% |
Tolerances yield stress +/-30 MPa
|
Designation |
Yield stress (MPa) |
Thickness (mm) |
|---|---|---|
|
TH580A |
580 |
0.16 - 0.25 |
|
TH620A |
620 |
0.15 - 0.25 |
|
TH650A |
650 |
0.15 - 0.22 |
|
TH680A |
680 |
0.15 - 0.22 |
|
TH700A |
700 |
0.14 - 0.20 |
|
TH750A |
750 |
0.14 - 0.20 |
Tolerances yield stress according to EN 10202:2022 +/-50 MPa after aging
|
Designation |
Yield stress (MPa) |
Thickness (mm) |
Typical elongation |
|---|---|---|---|
|
TH435/TH435 |
435 |
0.24 - 0.40 |
20% |
|
TH520/TH520N |
520 |
0.24 - 0.40 |
10% |
|
TH550/TH550N |
550 |
0.22 - 0.40 |
10% |
|
TH620N |
620 |
0.22 - 0.32 |
8% |
Tolerances yield stress according to EN 10202:2022 +/-50 MPa after aging
|
Designation |
Yield stress (MPa) |
Thickness (mm) |
Typical elongation |
|---|---|---|---|
|
TH435/TH435N |
435 |
0.23 - 0.40 |
20% |
|
TH460N |
460 |
0.23 - 0.40 |
15% |
|
TH550N |
550 |
0.23 - 0.40 |
10% |
|
TH580N |
580 |
0.23 - 0.36 |
10% |
|
TH600N |
600 |
0.23 - 0.36 |
10% |
|
TH620N |
620 |
0.22 - 0.34 |
8% |
|
TH650N |
650 |
0.22 - 0.28 |
8% |
|
Designation |
Yield stress (MPa) |
Thickness (mm) |
Typical elongation |
|---|---|---|---|
|
CS180A |
180 |
0.25 - 0.49 |
40% |
|
CS210 |
210 |
0.25 - 0.40 |
35% |
|
CS230 |
230 |
0.25 - 0.40 |
32% |
|
CS300 |
300 |
0.17 - 0.30 |
25% |
Tolerances Yield Stress +/-40 MPa
|
Designation |
Yield stress (MPa) |
Thickness (mm) |
Main end uses |
|---|---|---|---|
|
TS230 to TS275 |
230 to 275 |
0.16 - 0.49 |
2P cans, drawn ends, mounting cups |
|
TH330 to TH480 |
330 to 480 |
0.16 - 0.49 |
2P cans, aerosol components |
|
TH550 to TH680 |
550 to 680 |
0.13 - 0.40 |
2P cans, twist-off caps |
Tolerances yield stress according to EN 10202:2022 +/-50 MPa after aging
|
Designation |
Yield stress (MPa) |
Thickness (mm) |
Typical elongation |
|---|---|---|---|
|
TS245 |
245 |
0.17 - 0.49 |
28% |
|
TS260 |
260 |
0.17 - 0.49 |
25% |
|
TS275 |
275 |
0.17 - 0.49 |
22% |
Tolerances yield stress according to EN 10202:2022 +/-50 MPa after aging
|
Designation |
Yield stress (MPa) |
Thickness (mm) |
Width (mm) |
|---|---|---|---|
|
TH330* |
330 |
≥ 0.21 |
≤ 1205 |
|
TH360* |
360 |
≥ 0.195 |
≤ 205 |
|
TH390 |
390 |
≥ 0.195 |
≤ 1205 |
|
TH415 |
415 |
≥ 0.190 |
≤ 1205 |
|
TH430 |
430 |
≥ 0.180 |
≤ 1205 |
|
TH500* |
500 |
≥ 0.160 |
≤ 1205 |
All grades with low earing.
* Main tempers for DWI beverage
Tolerances Yield Stress +/-30 MPa
|
Tin coating per side (g/m²) |
EN 10202:2022 |
Max (g/m²)* |
ASTM designation No. |
|---|---|---|---|
|
0.6 |
0.50 |
1.20 |
5 |
|
1 |
0.75 |
1.80 |
- |
|
1.4 |
1.10 |
2.30 |
- |
|
2 |
1.60 |
3.00 |
- |
|
2.8 |
2.30 |
3.90 |
25 |
|
4 |
3.35 |
5.30 |
- |
|
5 |
4.20 |
6.50 |
- |
|
5.6 |
4.70 |
7.20 |
50 |
|
8.4 |
7.15 |
Not defined |
75 |
|
11.2 |
9.55 |
100 |
|
|
14 |
11.95 |
- |
|
|
15.1 |
12.90 |
- |
* Maximum tin coating defined for welded application only. Other tin coatings and differential coatings are available upon request.
|
|
Total Chromium (per side) |
|
|---|---|---|
|
Passivation code |
Min (mg/m²) |
Max (mg/m²) |
|
No passivation |
- |
- |
|
300 |
1.0 |
3.0 |
|
310 |
2.0 |
7.0 |
|
311 |
3.5 |
9.0 |
Total chromium is the sum of the metallic chromium and chromium content of the oxides and hydroxides
|
Passivation code |
Conditioning step |
Titanium content (per side) |
|
|---|---|---|---|
|
|
|
Min (mg/m²) |
Max (mg/m²) |
|
505 |
NO |
0.8 |
1.2 |
|
555 |
YES |
0.8 |
1.2 |
Standard oiling: DOS
ATBC oiling is also available on request
|
|
Total Chromium (per side) |
|
|---|---|---|
|
ECCS |
Min (mg/m²) |
Max (mg/m²) |
|
Cr total |
50 |
140 |
|
Cr ox |
7 |
35 |
Total chromium is the sum of the metallic chromium and chromium content of the oxides and hydroxides
DOS or BSO
LTS is a low tin coated steel with chromium-free CFPA passivation whose characteristics have been designed to address the markets currently served by ECCS. It is ArcelorMittal’s 100% chromium-free alternative to ECCS.
|
|
Tin coating per side |
Titanium/Zirconium passivation Titanium content (per side) (mg/m2) |
|---|---|---|
|
|
(g/m²) |
|
|
LTS |
0.6 |
1 +/- 0.2 |
DOS
Suited only for tabstocks applications.
|
Name |
Code |
Steel substrate |
TP |
ECCS |
Cr-free LTS |
ZE |
Roughness Ra (µm) |
|---|---|---|---|---|---|---|---|
|
Fine Stone |
FS |
Fine stone |
■ |
■ |
■ |
■ |
0.25 - 0.45 |
|
Stone |
ST |
Stone |
■ |
■ |
■ |
■ |
0.35 - 0.60 |
|
Silver |
SG |
Shot Blast |
■ |
|
|
|
0.80 - 1.20 |
|
Mat* |
MM |
Shot Blast |
■ |
■ |
|
|
0.80 - 1.20 |
*Mat finish on tinplate is always not reflown.
All varnished products are available either with BPA-NI or Epoxy-based lacquer systems
|
Final use |
Color |
Substrate |
|---|---|---|
|
Tabstocks |
Aluminum pigmented |
ZE |
|
Mounting cups |
Clear |
TP |
|
Can ends* |
Gold / Clear |
TP |
|
Other combinations (varnish / substrate / application) on request |
||
*Grades available only with BPA-NI coatings
|
Format |
Dimension |
Min |
Max |
|---|---|---|---|
|
Coil |
Weight |
6 tonnes |
20 tonnes |
|
Width |
730 mm |
1250 mm |
|
|
Lacquered coil |
Width |
|
980 mm |
|
Slit coil |
Width |
22 mm |
|
|
External diameter |
|
1600 mm |
|
|
Straight sheets |
Length |
510mm |
1150 mm |
|
Scrolled sheets |
Length |
559 mm |
1150 mm |
Some restrictions may exist, depending on the product. Tolerances and specific dimensions to be confirmed on request.
Products are delivered in standardized packaging, adapted to destination and mode of transport. Here are some examples:
 |

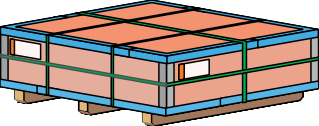

Sheet packing for road or rail transportation
|
 |

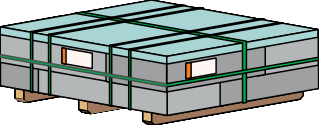

Sheet packing for sea transportation
|
 |
Coil packing for road or rail transportation
|
 |
Coil packing for sea transportation
|
These images do not imply any contractual commitment on the part of ArcelorMittal.
